Veterinary Dental X-Ray Power Installation in Pulborough

Understanding the Environment

X-ray equipment falls under controlled area regulations, meaning the electrical installation must actively support safety procedures for both staff and animals. In a veterinary setting, reliability is just as important as protection. Any failure in warning systems or control equipment must prevent the X-ray unit from operating altogether.

This installation was designed with that exact principle in mind.

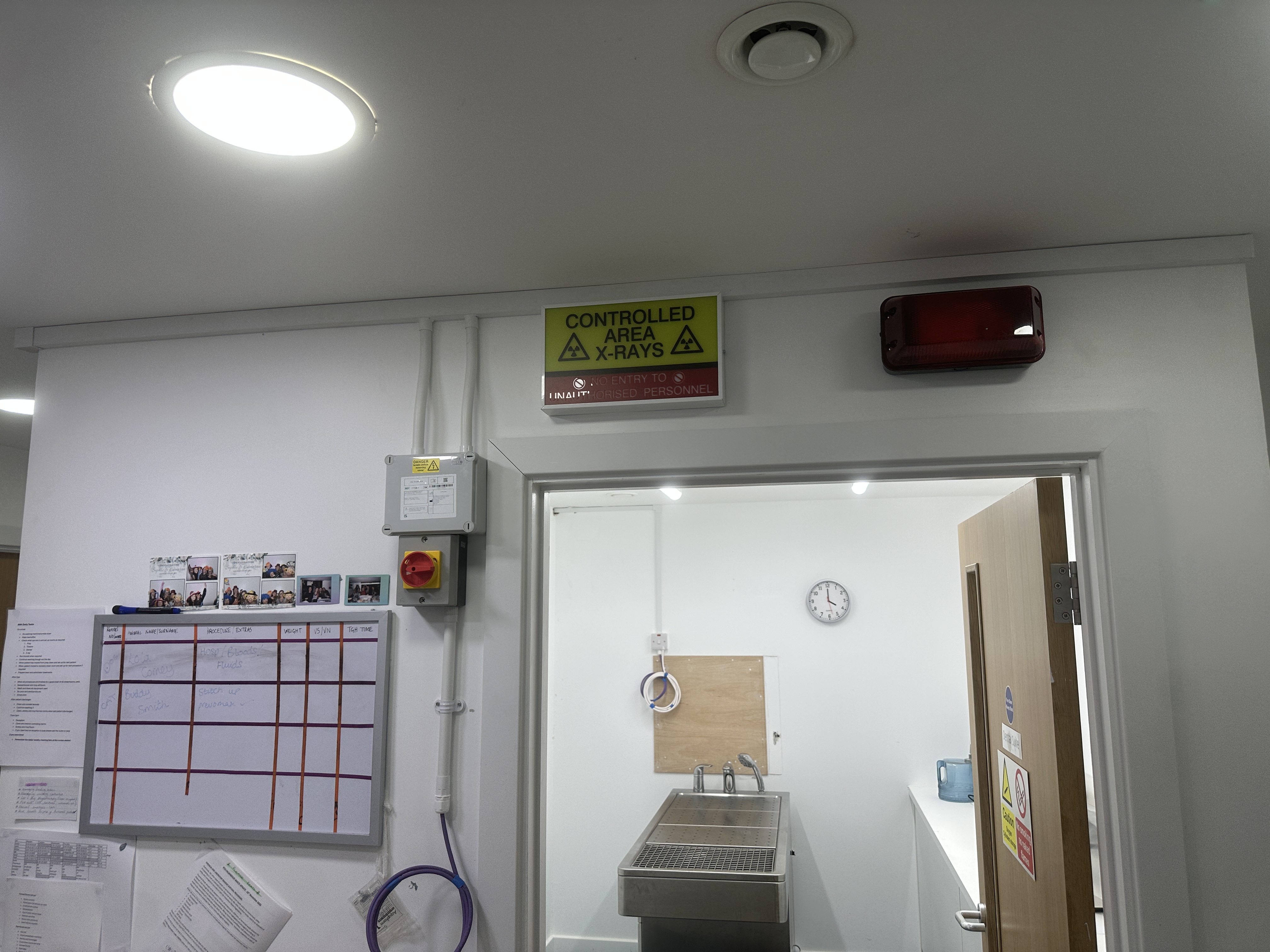

Surface-Mounted Containment with Fire Protection

Due to the nature of the building and the need for future access, the wiring was installed using surface-mounted trunking rather than concealed cabling. This approach allows for:

• Clear visibility of the installation
• Easier future maintenance or upgrades
• Minimal disruption to the fabric of the building

To enhance safety further, all cabling was secured using fire-rated clips. These are specifically designed to prevent premature cable collapse in the event of a fire, ensuring escape routes remain clear and the installation complies with current wiring regulations and fire safety guidance.

It’s a small detail that makes a big difference, especially in commercial and clinical environments.

Local Control via Rotary Isolator

The X-ray unit is supplied via a dedicated circuit, complete with a rotary isolator positioned for easy access. This allows staff to safely control the power supply to the X-ray equipment without needing to access distribution boards or other restricted areas.

From an operational standpoint, this means:

• Clear and immediate isolation of the equipment
• Improved safety during maintenance or faults
• Compliance with isolation and control requirements for specialist equipment
• Dual Warning Light System with Fail-Safe Protection

One of the most important elements of this installation is the warning light system.

Two warning lights were installed to clearly indicate when the X-ray unit is energised. One of these is a fail-safe warning light box, designed so that if the warning light fails to illuminate, the X-ray unit cannot power up.

In simple terms:

If the warning system isn’t working, the X-ray doesn’t work either

This prevents any scenario where the unit could be operating without a visible warning, protecting staff and ensuring the controlled area remains compliant at all times.

Clear Signage and Controlled Area Compliance

Appropriate X-ray warning signage was installed above the entrance to the room, clearly identifying it as a controlled area. This ensures that anyone entering the space is immediately aware of the risks and operating conditions.

Combined with the electrical safety systems, this creates a layered approach to protection – visual warnings, electrical interlocks, and physical isolation all working together.

A Specialist Electrical Installation Done Right

Projects like this highlight why experience in commercial and specialist electrical installations matters. Veterinary and medical environments demand a higher level of planning, understanding, and attention to detail, and this installation was designed to meet those expectations from day one.

If you’re planning specialist equipment installations in Pulborough or the surrounding West Sussex area, whether for veterinary practices, clinics, or commercial premises, Tide Electrical can design and install systems that prioritise safety, compliance, and reliability.
